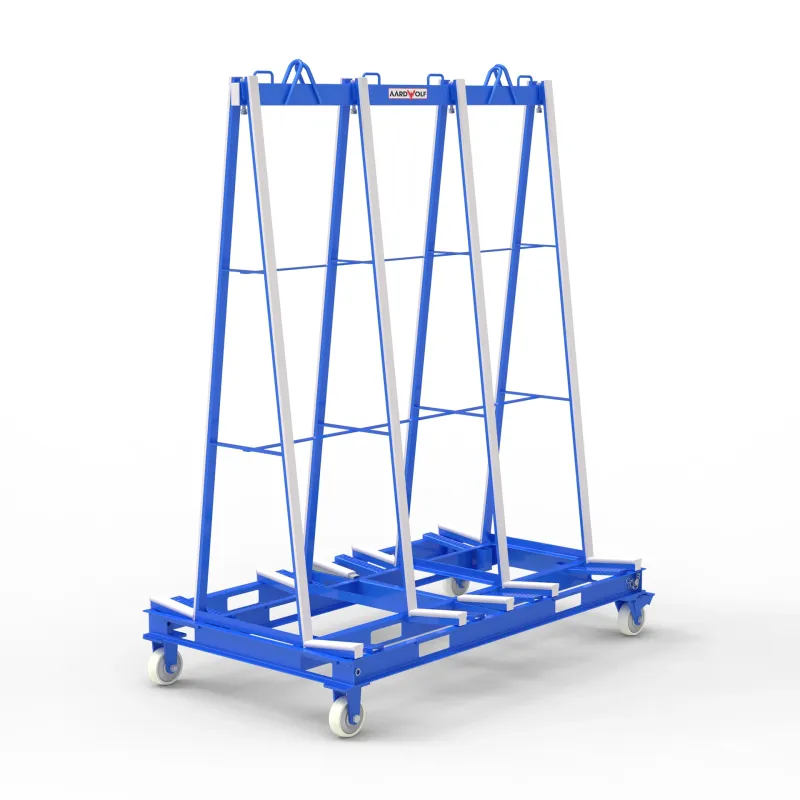

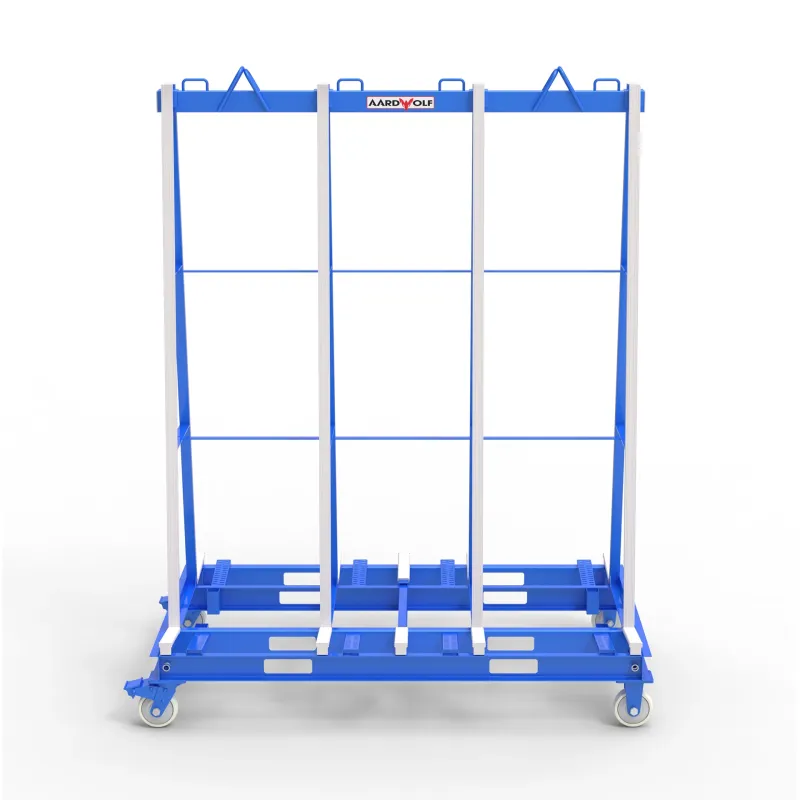

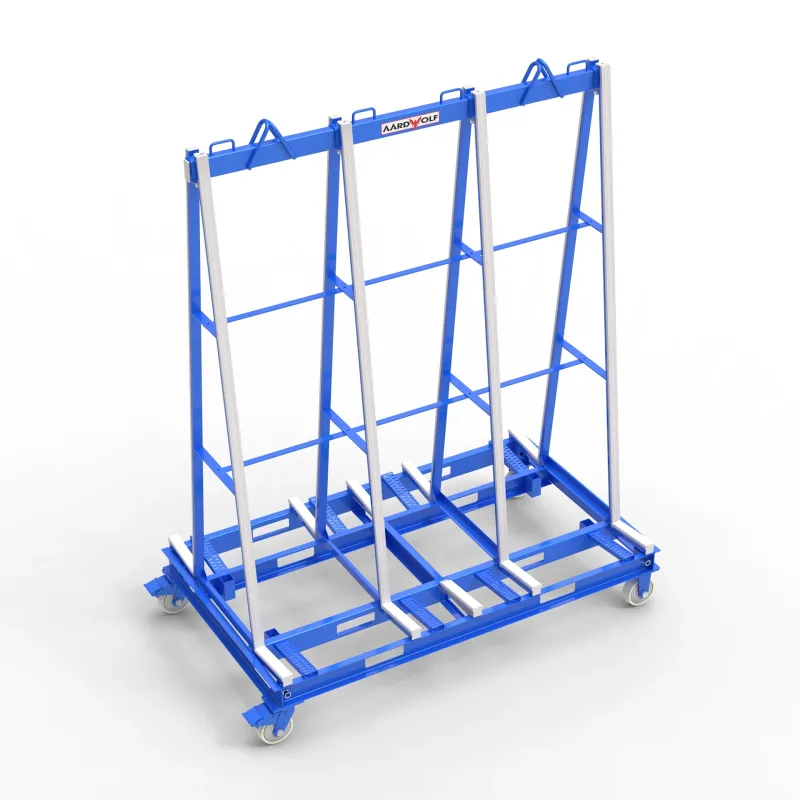

Universal Frame Tall FS-1880-2050A-4

Artikelnummer: FS-1880-2050A-4

Artikel-Beschreibungen

Abmessungen

Product Overview

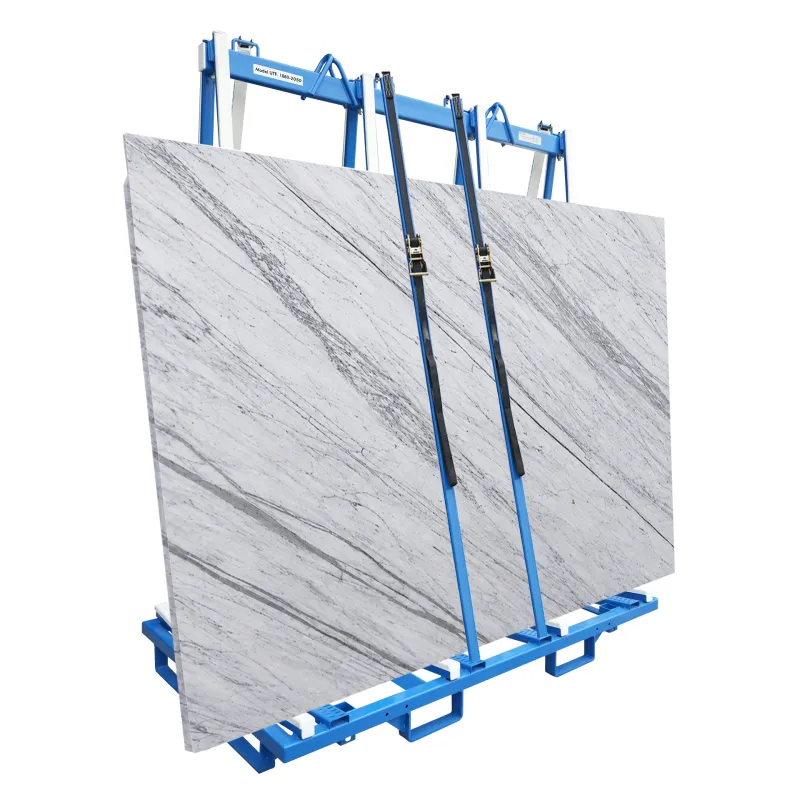

The Universal Frame Tall – 4 A-Frames is designed for taller glass sheets and stone slabs increasingly used in modern architectural, commercial and interior applications. With a working A-frame height of 2050 mm, the frame is optimised for materials requiring greater vertical support while maintaining stability during storage, transport and installation.

Four A-frame supports work together with integrated forklift pockets, lifting eyelets and heavy-duty castor wheels to provide safe, flexible and efficient material handling across workshops, warehouses and construction environments.

Key Features

Tall Frame Design: With a frame height of 2050 mm, the Universal Frame Tall provides additional support for taller materials, helping improve stability during storage and transport.
4 A-Frame Support Structure: Four A-frame supports deliver reliable load distribution while maintaining open access for material handling.
Heavy-Duty Steel Construction: Manufactured from high-quality steel to withstand demanding industrial environments and daily material handling operations.
Forklift Ready: Integrated forklift pockets allow quick and efficient transport within workshops, warehouses and construction sites.
Crane Ready: Built-in lifting eyes enable safe lifting and positioning using overhead cranes.
Mobile and Stable: Equipped with Ø150 mm heavy-duty castor wheels, including two wheels with safety brakes for secure positioning when stationary.

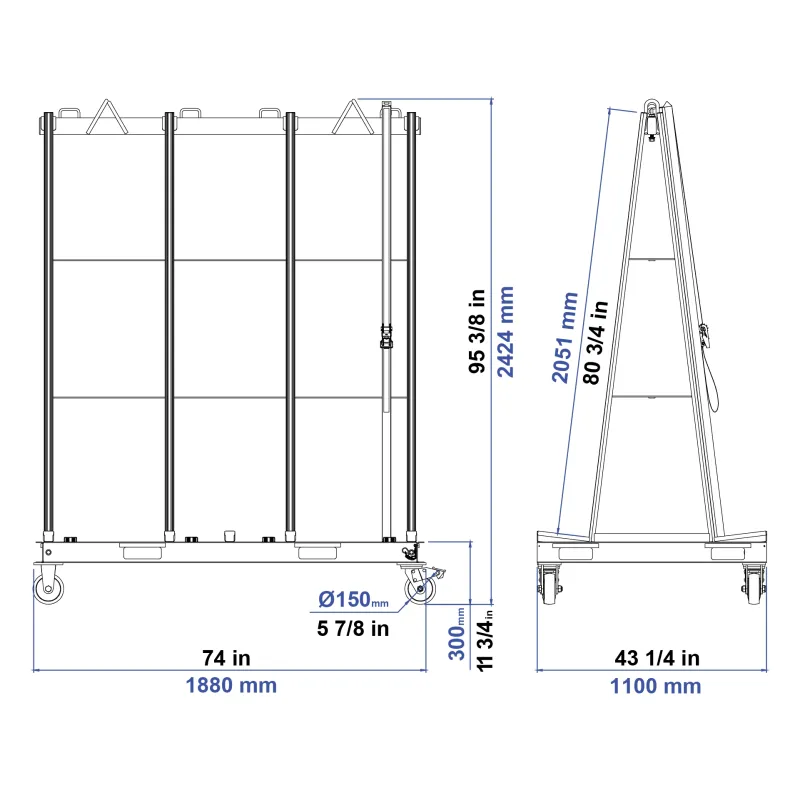

Specifications

Specification	Metric Value	Imperial Value
Model	FS-1880-2050A-4	FS-1880-2050A-4
Frame Length	1880 mm	74.0 in
Frame Height	2050 mm	80.7 in
Base Width	1100 mm	43.3 in
A-Frame Supports	4	4
Castor Wheel Diameter	Ø150 mm	Ø5.9 in
Wheels with Brakes	2	2
Working Load Limit	1,500 kg	3,307 lb

Volumen: 0.0000 M³

netto-Gewicht: Kgs
