Universal Frame Basic FS-1880-1650A-6

Artikelnummer: FS-1880-1650A-6

Artikel-Beschreibungen

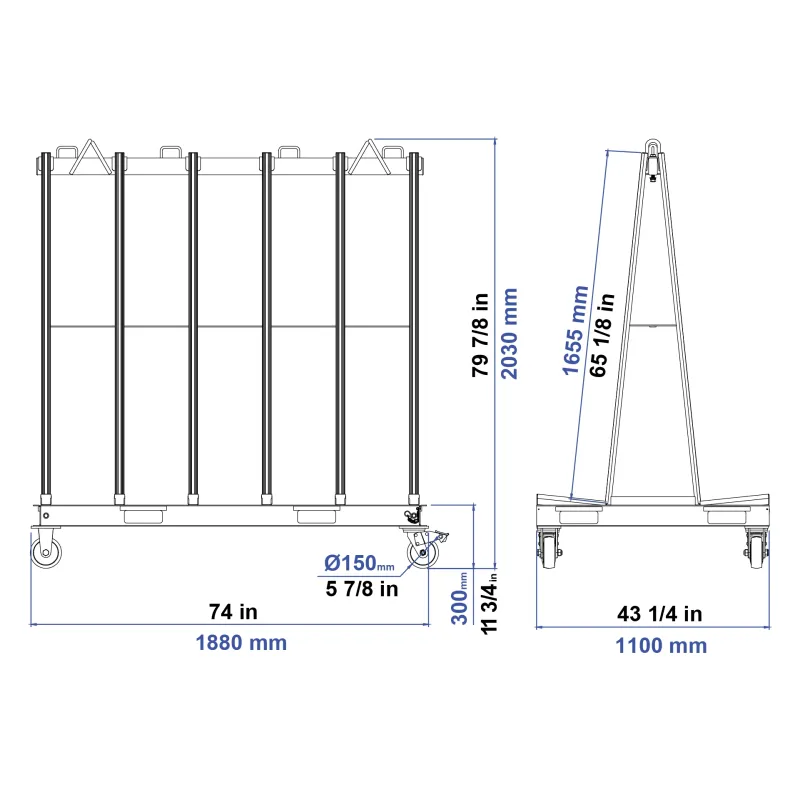

Abmessungen

Overview

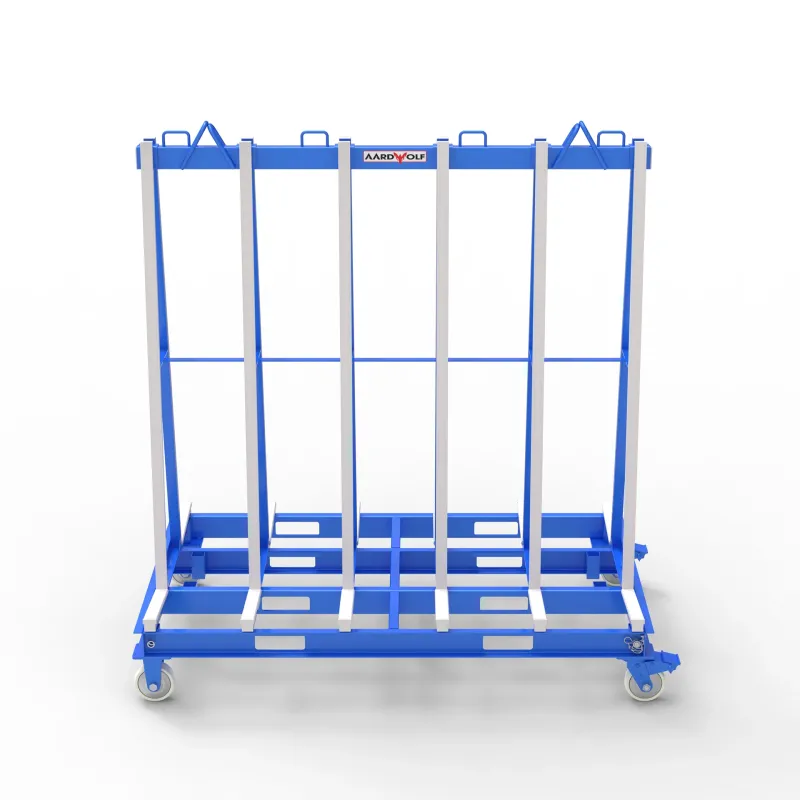

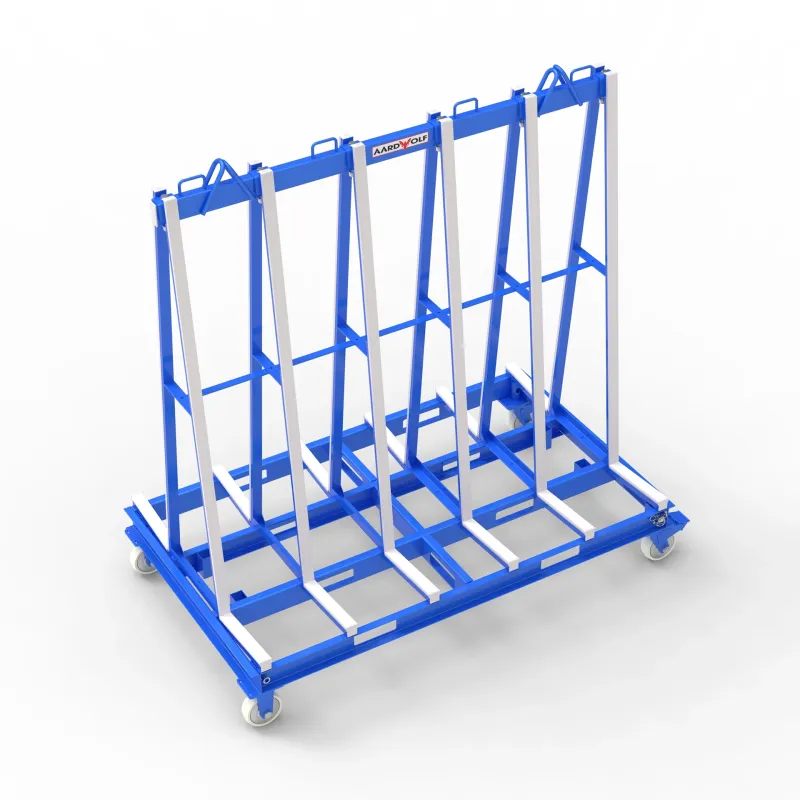

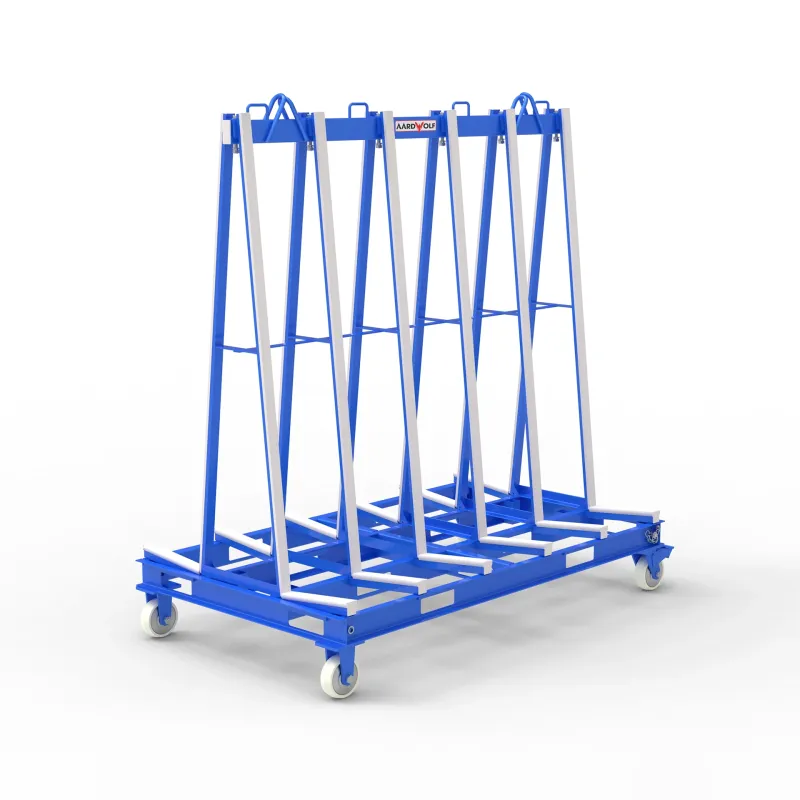

The Universal Frame Basic – 6 A-Frames is designed to accommodate the standard glass sheet and stone slab dimensions commonly used throughout the stone and glass industries. With a frame length of 1880 mm and a working A-frame height of 1650 mm, it is optimised for modern materials including granite, marble, quartz, engineered stone and glass sheets, supporting efficient storage, transport and installation operations.

Six A-frame supports are positioned along the frame length to provide effective material support and maintain stability throughout handling operations. Integrated forklift pockets, lifting eyelets and heavy-duty castor wheels contribute to efficient material handling across manufacturing facilities, warehouses and project sites.

Key Features

Six A-Frame Support Configuration: Six A-frame supports provide additional support points to improve material stability and load distribution.
Heavy-Duty Steel Construction: Built from high-quality steel to withstand demanding industrial environments.
Integrated Forklift Pockets: Designed for efficient handling with forklifts.
Lifting Eyelets for Crane Handling: Integrated lifting points allow safe lifting and positioning using cranes.
Heavy-Duty Castor Wheels: Ø150 mm castor wheels enable smooth movement throughout workshops and warehouses.
Two Safety Wheel Brakes: Two wheels are fitted with brakes to secure the frame during storage and material handling operations.

Specifications

Specification	Metric Value	Imperial Value
Product Code	FS-1880-1650A-6	FS-1880-1650A-6
Frame Length	1880 mm	74.0 in
Frame Height	1655 mm	65.2 in
Base Width	1100 mm	43.3 in
A-Frame Supports	6	6
Wheel Diameter	Ø150 mm	Ø5.9 in
Wheels with Brakes	2	2
Working Load Limit	1,500 kg	3,307 lb

Volumen: 0.0000 M³

netto-Gewicht: Kgs
