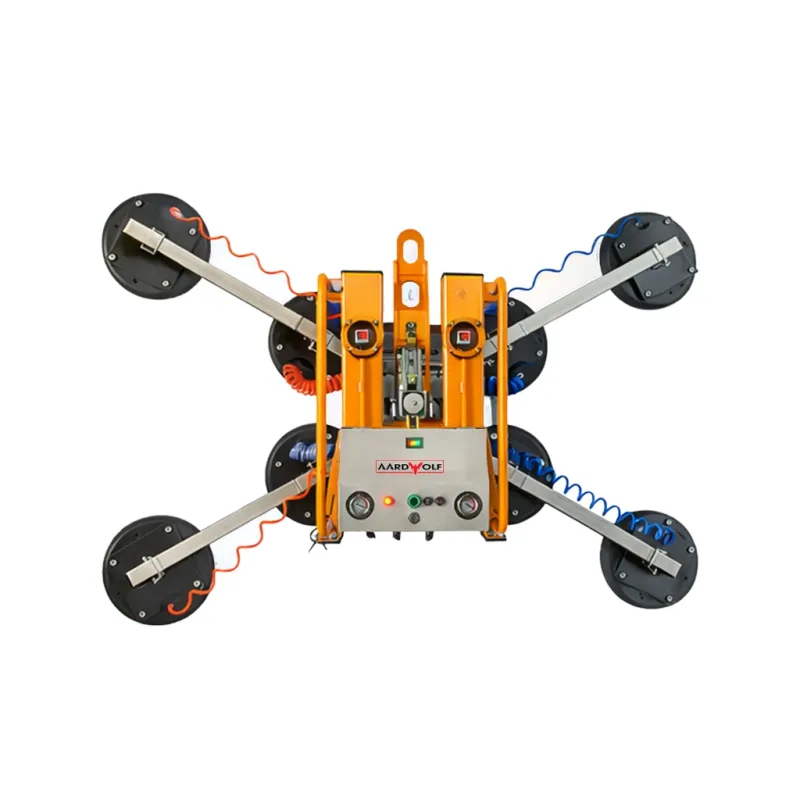

Vacuum GlassGrip VGG8D

Artikelnummer: VGG8D

Artikel-Beschreibungen

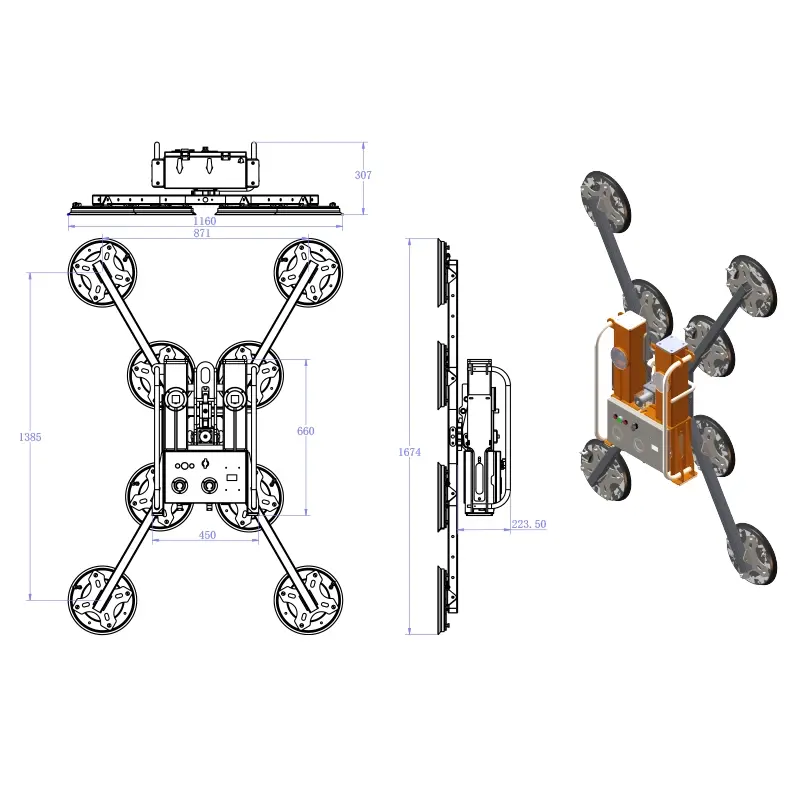

Abmessungen

General

The VGG8D is designed for oversized glass panels and large-scale curtain wall installations. Equipped with eight Ø290 mm suction pads and dual vacuum circuits, the unit delivers maximum stability during lifting and precise positioning. Fully battery-powered and available with an optional wireless remote control, the VGG8D provides high levels of safety and efficiency for complex façade applications.

Key Features

Dual vacuum circuits
Eight Ø290 mm suction pads
0–90° tilting and continuous 360° rotation
Battery-powered operation
Optional wireless remote control

Applications

Large curtain wall panels
Oversized insulated glass units
High-rise glazing installations
Heavy façade installation requiring maximum stability

SPECIFICATIONS

Specification	Value
Max Load Capacity	650 kg
Suction Cups	8 × 290 mm diameter
Tilting Range	0° to 90°
Rotation	360° endless rotation
Control	Manual or optional wireless remote
Battery	DC 12V–15Ah
Weight	75 kg
