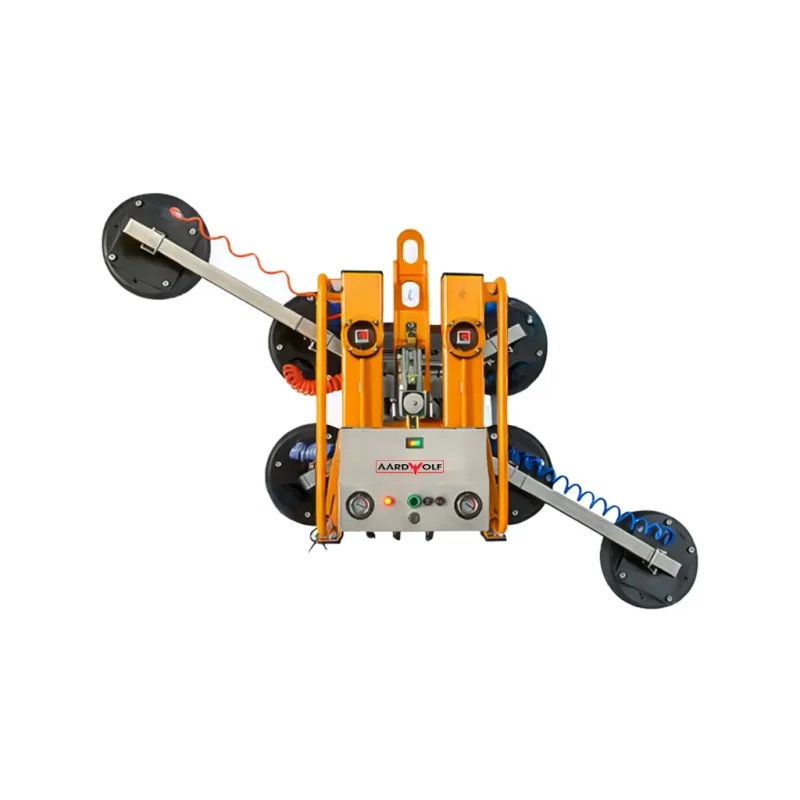

Vacuum GlassGrip VGG6D

Artikelnummer: VGG6D

Artikel-Beschreibungen

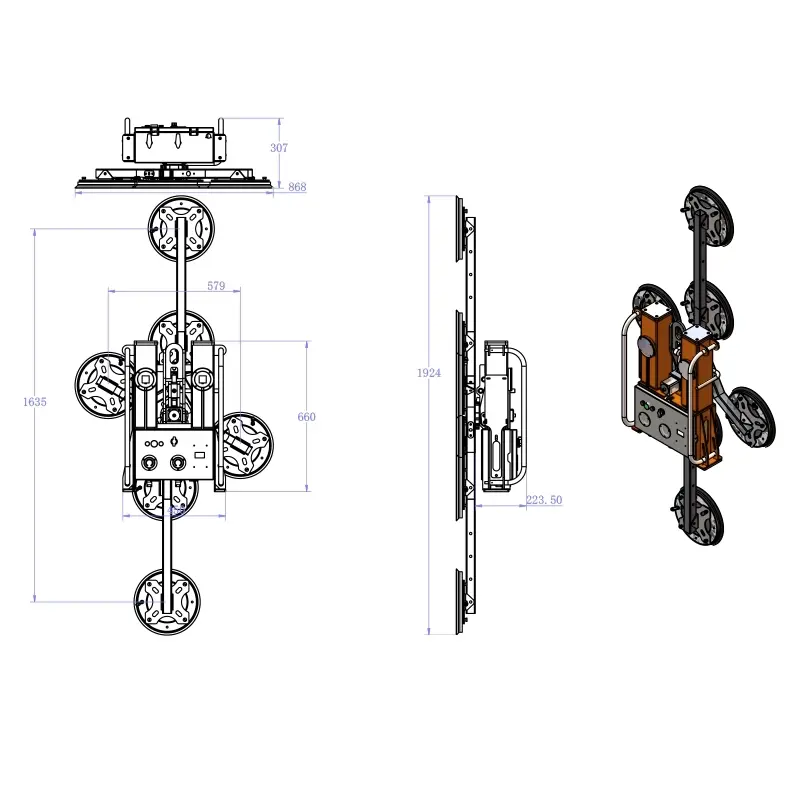

Abmessungen

General

The VGG6D is designed for insulated glass units and large-format glass panels, utilizing six Ø290 mm suction pads and a dual vacuum system to enhance stability and safety. The unit is fully battery-powered and offers an optional remote control, making it well suited for façade installation and applications requiring high positioning accuracy.

Key Features

Dual vacuum circuits
Six Ø290 mm suction pads
0–90° tilting and 360° rotation
Battery-powered operation
Optional remote control

Applications

Installation of large insulated glass units
Glass façade construction
Projects requiring precise angular alignment
Work at height or in hard-to-reach locations

Specifications

Specification	Value
Max Load Capacity	650 kg
Suction Cups	6 × 290 mm diameter
Tilting Range	0° to 90°
Rotation	360° endless rotation
Control	Manual or optional wireless remote
Battery	DC 12V–15Ah
Weight	75 kg

Volumen: 0.0000 M³

netto-Gewicht: Kgs
