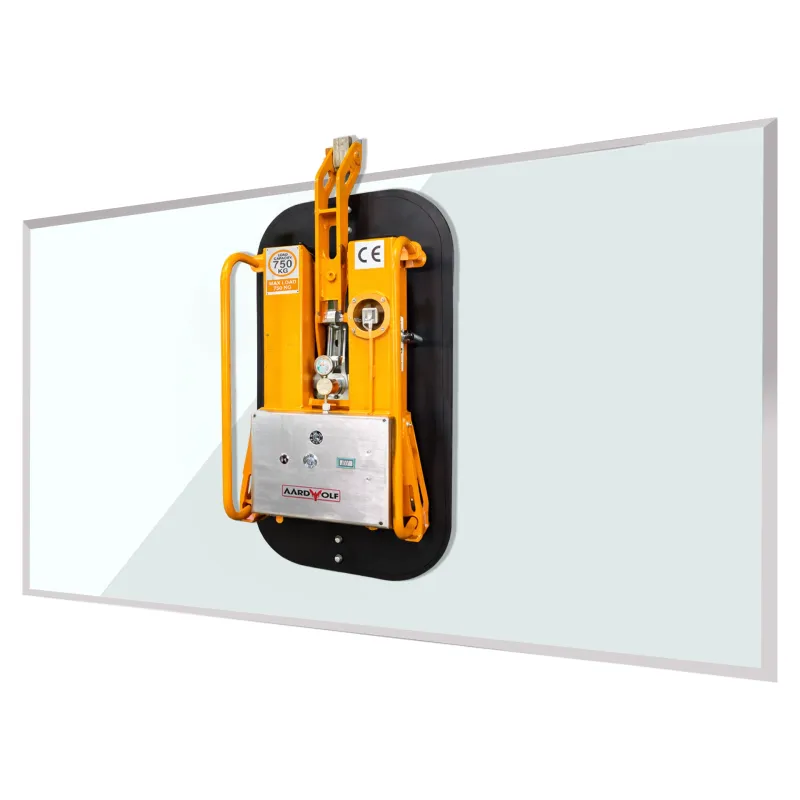

Vacuum GlassGrip VGG750

Artikelnummer: VGG750

Artikel-Beschreibungen

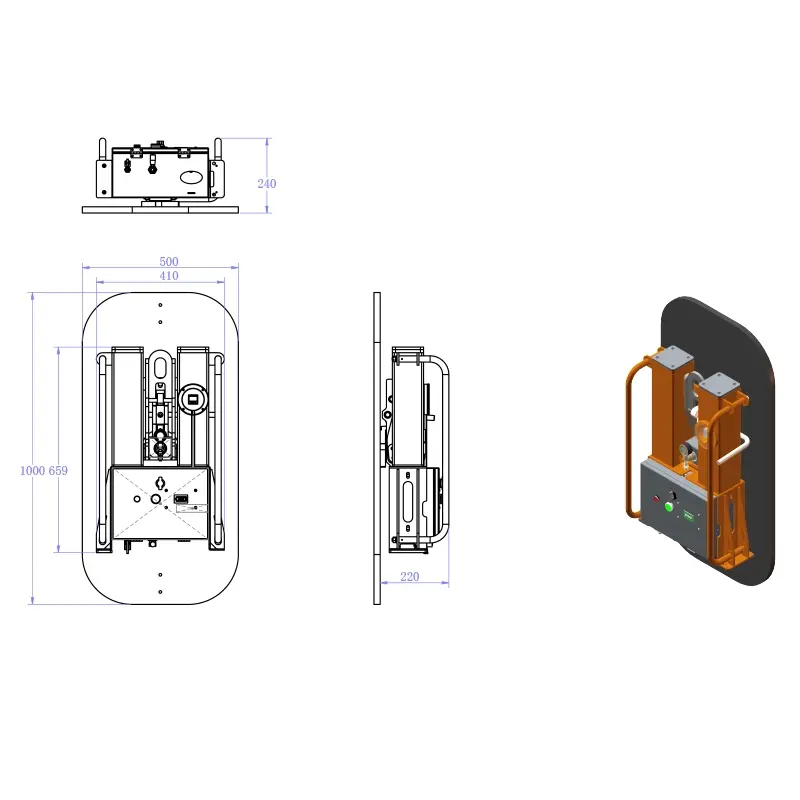

Abmessungen

General

The VGG750 provides higher lifting capacity for thick or heavy glass panels, suitable for commercial installations. Like the VGG500, it is fully battery-powered and supports tilting and rotating functions. A vacuum pressure gauge, battery indicator, and vacuum compensation system ensure safe and stable operation during glass handling and installation.

Key Features

Dual vacuum circuits
Compact and easy to operate
750 kg lifting capacity
90° tilt & 360° rotation
No external power required
Vacuum pressure and battery status display
Automatic vacuum compensation

Application

Large and heavy glass panels
Shopfronts and commercial glazing
Heavy-duty on-site lifting
Glass delivery and onsite transport

Specifications

	Value
Load Capacity	750 kg
Suction Pad	1 pc
Tilt & Rotation Type	Manual
Tilt Angle	90°
Rotation Angle	360°
Suction & Release Control	Manual slide valve
Battery	DC 12V
N.W./G.W.	60 kg
Packing Size	0.5 m³
