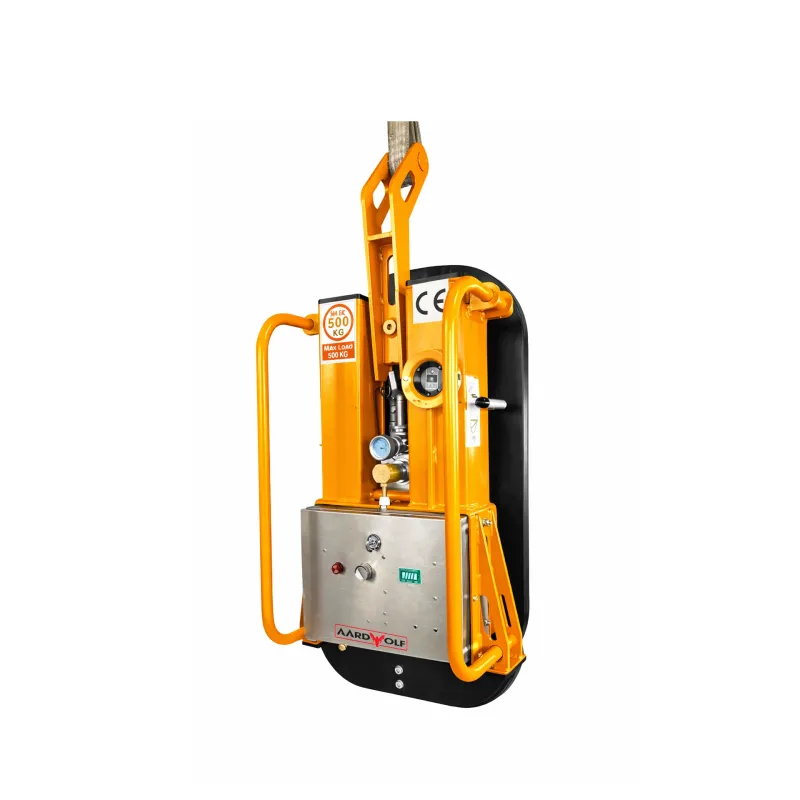

Vacuum GlassGrip VGG500
Artikelnummer: VGG500Overview
The Aardwolf Vacuum GlassGrip range has been developed to meet the demands of lifting, rotating, and precise positioning of glass in construction works, architectural glazing installations, insulated glass units, and modern façade systems.
The VGG500 is a compact and lightweight glass lifter designed for standard glazing applications. Powered by a DC vacuum pump and DC battery, it operates without the need for external air or power sources. The unit supports 90° tilting and 360° rotation and features a vacuum pressure display and battery indicator for safe monitoring. A built-in vacuum compensation system maintains stable suction pressure during operation. A replaceable sealing ring and a dedicated transport trolley enhance ease of use and maintenance.
Features
- Compact design for easy operation
- Lifting capacity of 500 kg
- 90° tilting and 360° rotation
- Fully self-powered with no external power source required
- Vacuum pressure display and battery indicator
- Automatic vacuum pressure compensation system
Applications
- Installation of glass doors and interior glass partitions
- Handling of small to medium-sized glass panels
- Small-scale residential and commercial projects
- Glass workshops requiring a mobile lifting solution
SPECIFICATIONS
|
|
Value |
|
Load Capacity |
500 kg |
|
Suction Pad |
1 pc |
|
Tilt & Rotation Type |
Manual |
|
Tilt Angle |
90° |
|
Rotation Angle |
360° |
|
Suction & Release Control |
Manual slide valve |
|
Battery |
DC 12V |
|
N.W./G.W. |
60 kg |
|
Packing Size |
0.5 m³ |
