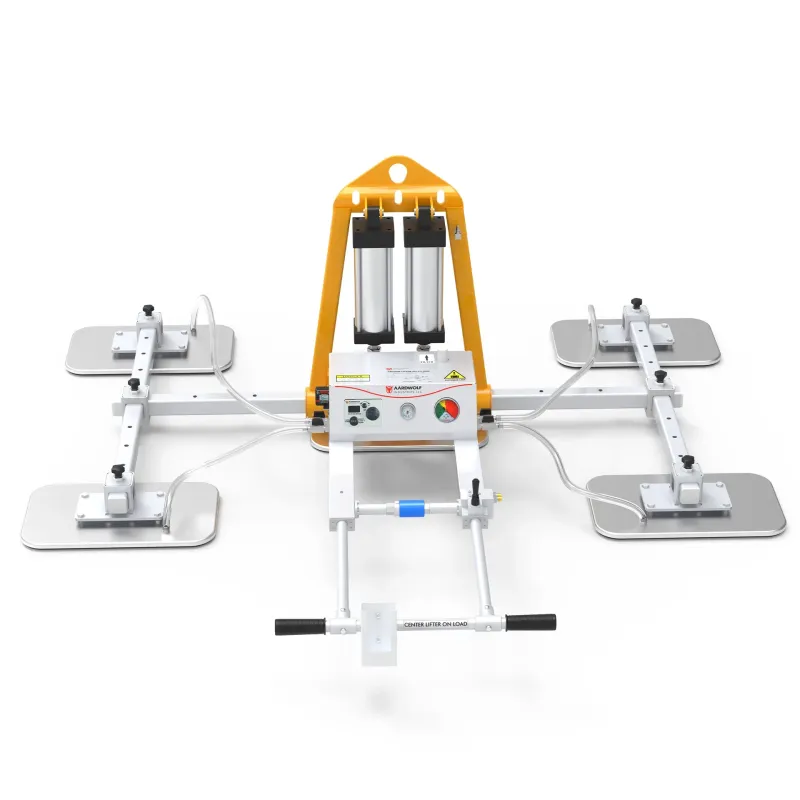

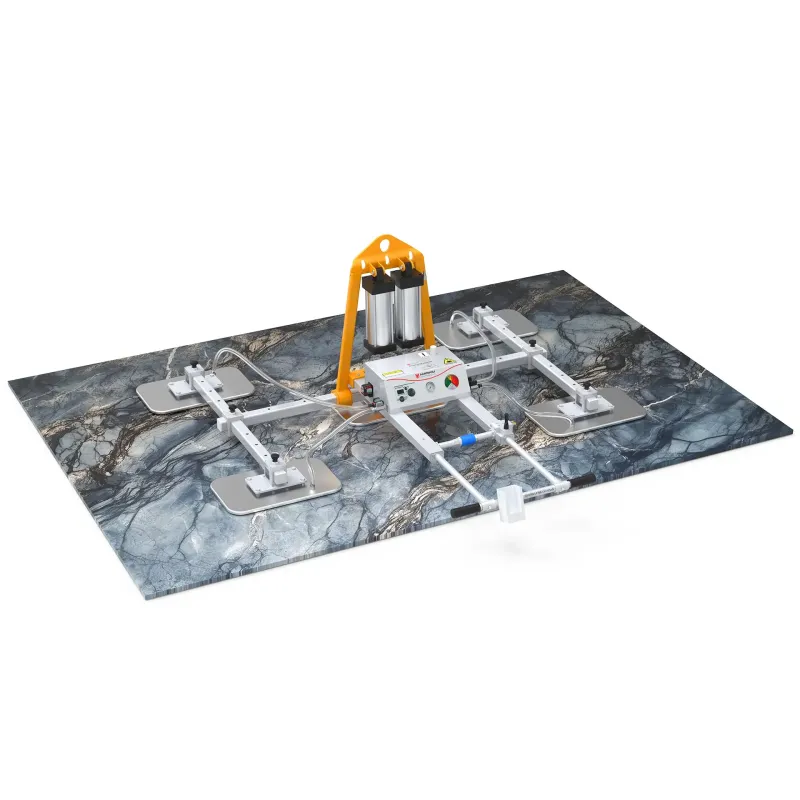

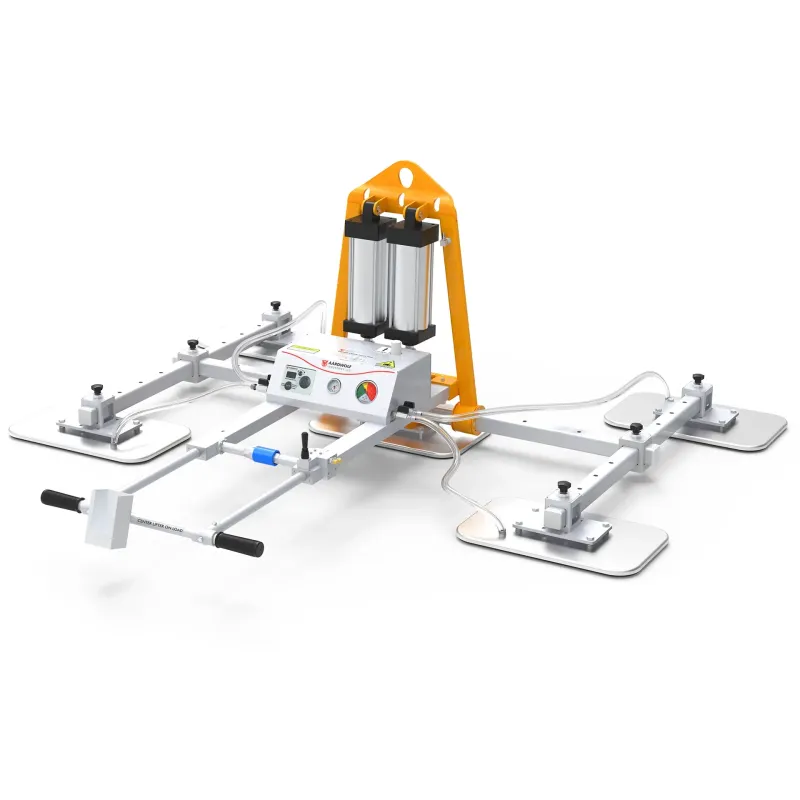

Vacuum Lifter Pro AVLP5-1000
Artikelnummer: AVLP5-1000General
The Aardwolf Vacuum Lifter Pro (AVLP5-1000) is engineered for precision, durability, and energy efficiency in handling marble and granite surfaces. With 90° material tilting, dual operation modes, and an energy-saving system, it’s perfect for workshops, construction sites, and manufacturing facilities.
Features
- Pneumatic Tilting: 0°-90° vertical-horizontal movement for versatile handling.
- Dual Operation Modes:
- Audio Alarm Mode: Activates a buzzer when vacuum pressure drops below 64 kPa.
- Energy Saver Mode: Automatically reactivates the pump when vacuum pressure is low and shuts it off when sufficient vacuum is achieved, optimizing air and energy usage.
- High Vacuum Performance: Ensures secure material grip, reducing slippage and damage.
- Adjustable handles: Extend from 76.2mm (3") to 106.68mm (4.2") for comfort.
- Durable Construction: The aluminum handle protects air and vacuum lines.
- Slide Valve: ON/OFF mechanism for quick material release.
- Safety System: Provides real-time monitoring and alerts for maximum safety, powered by a rechargeable battery for continuous operation.
- Adjustable Pad Configuration: Rotating pads adapt to various shapes and sizes.
Specifications
|
AVLP5-1000 |
Metric |
|
Number of pads |
5 |
|
Pad size |
500 × 300 mm |
|
Working load limit – Vertical |
500 kg |
|
Working load limit – Horizontal |
1000 kg |
|
Net weight |
114 kg |
|
Gross weight |
169 kg |
|
Packaging dimensions |
L.2070 × W.430 × H.960 mm |
|
BATTERY INFORMATION – ALARM SYSTEM |
Details |
|
Battery code |
GBA 12V 2.0Ah Bosch |
|
Battery type |
Lithium-ION |
|
Voltage |
12V |
|
Capacity |
2.0Ah |
|
Quantity |
1 |
|
Continuous operation time (Energy Saver Mode) |
2 hours |
|
Working time (Energy Saver Mode) |
6 hours |
|
Continuous operation time (Audio Alarm only) |
120 hours |
|
Working time (Audio Alarm only) |
360 hours |
|
BATTERY CHARGER |
Details |
|
Charger code |
GAL 12V-40 Bosch |
|
Input supply voltage |
220–240 VAC |
|
Output voltage |
12V |
|
Output current |
4.0Ah |
|
Quantity |
1 |
|
Full charge time |
0.5 hour |
|
Weight |
460 g |
|
COMPRESSED AIR REQUIREMENT |
Details |
|
Air consumption |
180 liters/min |
|
Supply air pressure |
5 bars (72 psi) |
