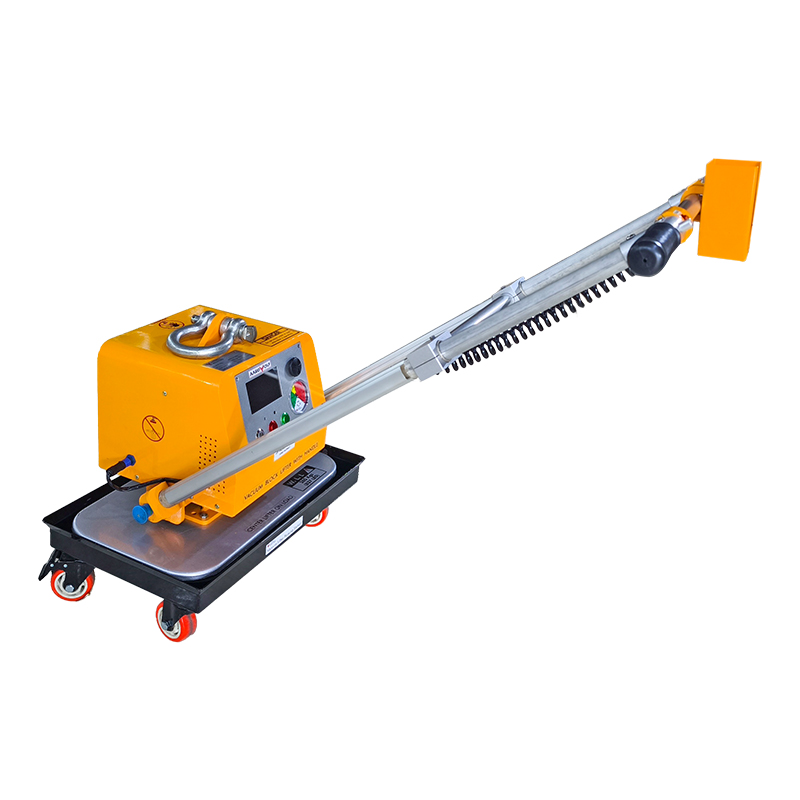

Vacuum Block Lifter with Handle AVBLH380
Artikelnummer: AVBLH380General Description
The Aardwolf Vacuum Block Lifter with Handle (AVBLH380) is designed for efficient lifting of heavy slabs up to 380 kg. Compact and robust, it features a high-performance battery-powered vacuum system with a clip-in 24V, 12Ah battery that supports extended operation. The unit offers dual control options—integrated buttons on the ergonomic handle for direct use, or body-mounted controls for flexible access. It supports versatile lifting methods, including manual handling, forklift, or crane hook attachment via the built-in mount. This combination of features makes the AVBLH380 a flexible and dependable tool for various site conditions.
Key Features
- Automatic Vacuum System: Ensures safe operation with real-time visual and audio feedback.
- Dual Controls: Handle-mounted for precise control or body-mounted for wider accessibility.
- Easy Pad Replacement: Quick and hassle-free pad changes
- Visual Monitor & Alarm: Displays vacuum levels in real time with warning alerts.

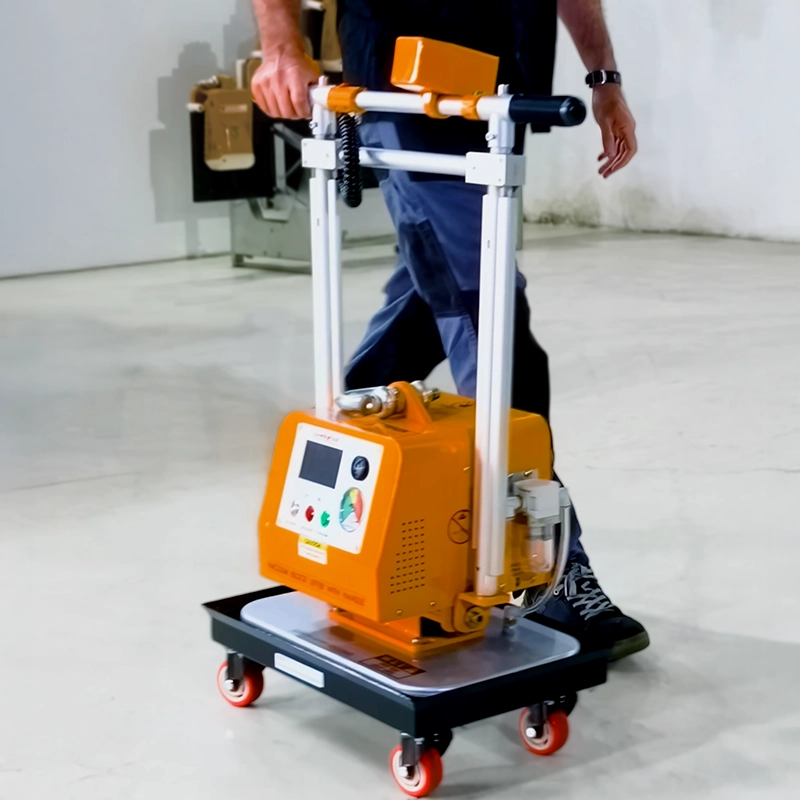

- Built-in Handle: Ergonomic design for easy and safe manual handling.

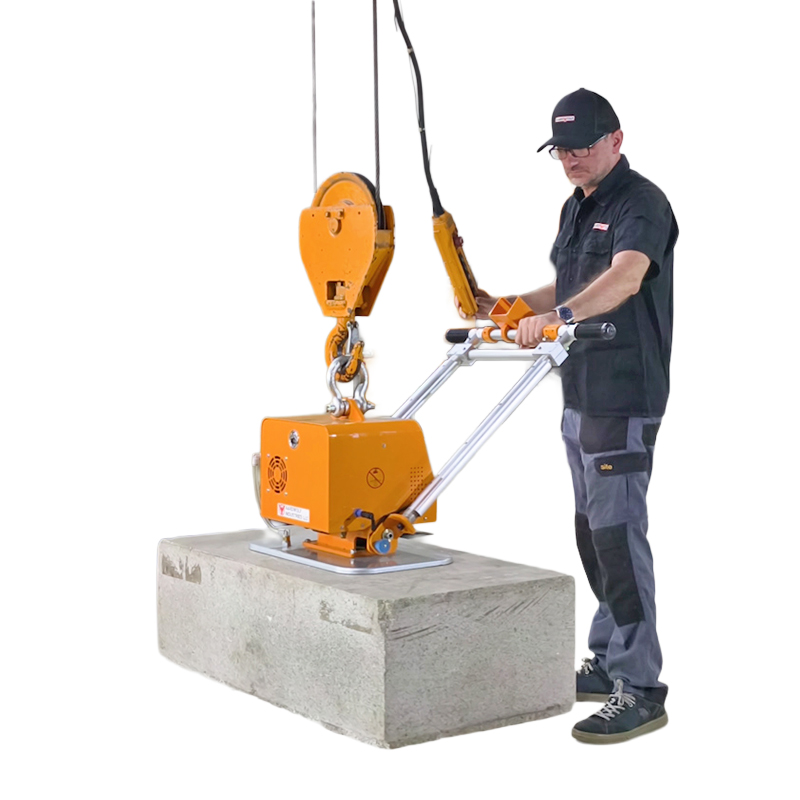

- Versatile Operation: Supports manual use, forklifts, or cranes.
- High Capacity: Lifts up to 380 kg (837 lbs) using the 500x300 mm vacuum pad.
- Efficient Battery: Powered by a 24V-12Ah battery.
Specifications
|
Metric |
Imperial |
|
|
Working Load Limit |
380 kg |
837 lbs |
|
Suction Pad Size |
500 x 300 mm |
19.7" x 11.8" |
|
Net Weight |
33 kg |
72 lbs |
|
Battery Capacity |
24V, 12Ah |
— |
|
Continuous Working Time |
2.5 hours |
— |
|
Vacuum Flow Rate |
70 liters/min |
— |
|
Motor |
24V, 4.5A |
— |
