Waterfall Setting Tool WHVC1
Artikelnummer: WHVC1General Introduction

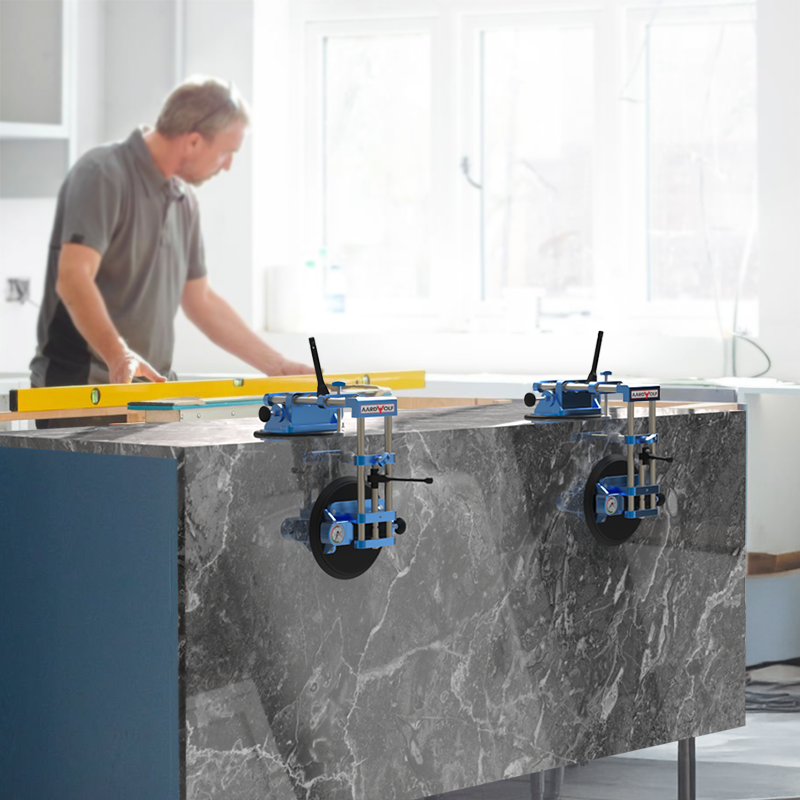

The Aardwolf Waterfall Setting Tool (WHVC1) is a precision alignment tool designed for bonding waterfall panels to countertops. Ideal for granite, marble, and engineered stone, it uses dual vacuum cups with built-in gauges and hand pumps to hold and align panels securely.
With its durable aluminum and stainless-steel build, adjustable sliding shafts, and tool-free knobs, the WHVC simplifies mitered joint alignment. It’s compact, portable, and ideal for both shop and on-site use.
Note: Supplied as a set of two tools (left and right units).
Key Features
-
Dual Vacuum Cups hold polished stone securely without marking.
-
Integrated Gauges allow real-time vacuum monitoring.
-
Fast Pump Activation achieves a strong vacuum in three strokes.
-
Release Valves ensure instant release with no risk of sticking.
-
Durable Build with rust-resistant materials.
-
Tool-Free Setup using quick knobs.
-
Surface Safe with non-invasive clamping.
-
Compact Design fits easily into jobsite workflows.
Specifications
|
|
Metric |
Imperial |
|
Suction Cups |
4 × Ø200 mm (2 per tool) |
4 × Ø7 7/8" (2 per tool) |
|
Working load limit |
100 kg |
220 lbs |
|
Net weight |
8.1 Kg |
17.86 lbs |
|
Gross weight |
9.2 Kg |
20.28 lbs |
|
Packaging dimensions |
L.390 x W.250 x H.380 mm |
15.35 x 9.84 x 14.96 inches |
